Tutorial: PointNav in RoboTHOR#

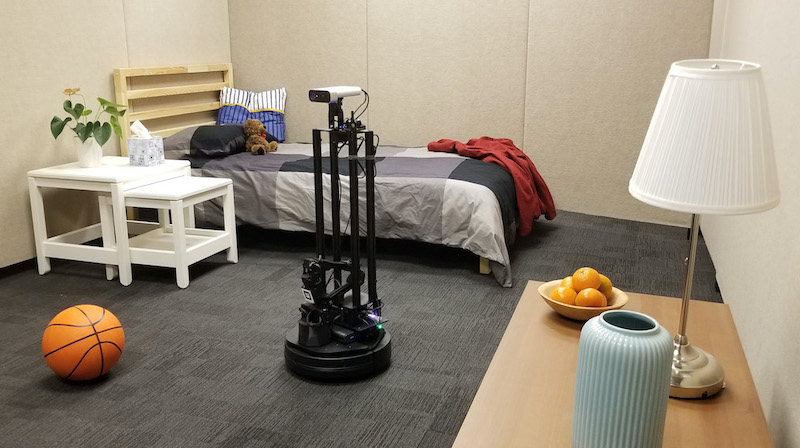

RoboTHOR Robot

Introduction#

One of the most obvious tasks that an embodied agent should master is navigating the world it inhabits. Before we can teach a robot to cook or clean it first needs to be able to move around. The simplest way to formulate "moving around" into a task is by making your agent find a beacon somewhere in the environment. This beacon transmits its location, such that at any time, the agent can get the direction and euclidian distance to the beacon. This particular task is often called Point Navigation, or PointNav for short.

PointNav#

At first glance, this task seems trivial. If the agent is given the direction and distance of the target at all times, can it not simply follow this signal directly? The answer is no, because agents are often trained on this task in environments that emulate real-world buildings which are not wide-open spaces, but rather contain many smaller rooms. Because of this, the agent has to learn to navigate human spaces and use doors and hallways to efficiently navigate from one side of the building to the other. This task becomes particularly difficult when the agent is tested in an environment that it is not trained in. If the agent does not know how the floor plan of an environment looks, it has to learn to predict the design of man-made structures, to efficiently navigate across them, much like how people instinctively know how to move around a building they have never seen before based on their experience navigating similar buildings.

What is an environment anyways?#

Environments are worlds in which embodied agents exist. If our embodied agent is simply a neural network that is being trained in a simulator, then that simulator is its environment. Similarly, if our agent is a physical robot then its environment is the real world. The agent interacts with the environment by taking one of several available actions (such as "move forward", or "turn left"). After each action, the environment produces a new frame that the agent can analyze to determine its next step. For many tasks, including PointNav the agent also has a special "stop" action which indicates that the agent thinks it has reached the target. After this action is called the agent will be reset to a new location, regardless if it reached the target. The hope is that after enough training the agent will learn to correctly assess that it has successfully navigated to the target.

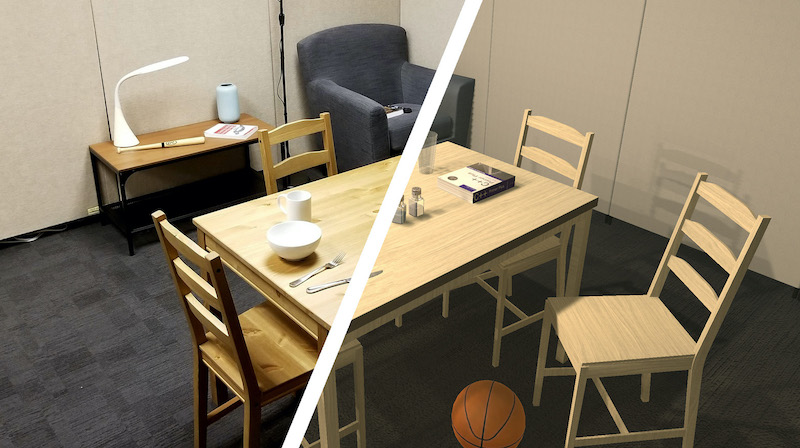

RoboTHOR Sim vs. Real

There are many simulators designed for the training of embodied agents. In this tutorial, we will be using a simulator called RoboTHOR, which is designed specifically to train models that can easily be transferred to a real robot, by providing a photo-realistic virtual environment and a real-world replica of the environment that researchers can have access to. RoboTHOR contains 60 different virtual scenes with different floor plans and furniture and 15 validation scenes.

It is also important to mention that AllenAct has a class abstraction called Environment. This is not the actual simulator game engine or robotics controller, but rather a shallow wrapper that provides a uniform interface to the actual environment.

Learning algorithm#

Finally, let us briefly touch on the algorithm that we will use to train our embodied agent to navigate. While AllenAct offers us great flexibility to train models using complex pipelines, we will be using a simple pure reinforcement learning approach for this tutorial. More specifically, we will be using DD-PPO, a decentralized and distributed variant of the ubiquitous PPO algorithm. For those unfamiliar with Reinforcement Learning we highly recommend this tutorial by Andrej Karpathy, and this book by Sutton and Barto. Essentially what we are doing is letting our agent explore the environment on its own, rewarding it for taking actions that bring it closer to its goal and penalizing it for actions that take it away from its goal. We then optimize the agent's model to maximize this reward.

Requirements#

To train the model on the PointNav task, we need to install the RoboTHOR environment and download the RoboTHOR PointNav dataset

The dataset contains a list of episodes with thousands of randomly generated starting positions and target locations for each of the scenes as well as a precomputed cache of distances, containing the shortest path from each point in a scene, to every other point in that scene. This is used to reward the agent for moving closer to the target in terms of geodesic distance - the actual path distance (as opposed to a straight line distance).

Config File Setup#

Now comes the most important part of the tutorial, we are going to write an experiment config file. If this is your first experience with experiment config files in AllenAct, we suggest that you first see our how-to on defining an experiment which will walk you through creating a simplified experiment config file.

Unlike a library that can be imported into python, AllenAct is structured as a framework with a runner script called main.py which will run the experiment specified in a config file. This design forces us to keep meticulous records of exactly which settings were used to produce a particular result, which can be very useful given how expensive RL models are to train.

The projects/ directory is home to different projects using AllenAct. Currently it is populated with baselines of popular tasks and tutorials.

We already have all the code for this tutorial stored in projects/tutorials/pointnav_robothor_rgb_ddppo.py. We will be using this file to run our experiments, but you can create a new directory in projects/ and start writing your experiment there.

We start off by importing everything we will need:

import glob
from math import ceil
from typing import Dict, Any, List, Optional

import gym
import numpy as np
import torch
import torch.nn as nn
import torch.optim as optim
from torch.optim.lr_scheduler import LambdaLR
from torchvision import models

from core.algorithms.onpolicy_sync.losses import PPO
from core.algorithms.onpolicy_sync.losses.ppo import PPOConfig
from projects.pointnav_baselines.models.point_nav_models import (
    ResnetTensorPointNavActorCritic,
)
from plugins.ithor_plugin.ithor_sensors import RGBSensorThor
from core.base_abstractions.experiment_config import ExperimentConfig
from core.base_abstractions.preprocessor import ObservationSet
from core.base_abstractions.task import TaskSampler
from plugins.habitat_plugin.habitat_preprocessors import ResnetPreProcessorHabitat
from plugins.robothor_plugin.robothor_sensors import GPSCompassSensorRoboThor
from plugins.robothor_plugin.robothor_task_samplers import PointNavDatasetTaskSampler
from plugins.robothor_plugin.robothor_tasks import PointNavTask
from utils.experiment_utils import Builder, PipelineStage, TrainingPipeline, LinearDecay

Next we define a new experiment config class:

class PointNavRoboThorRGBPPOExperimentConfig(ExperimentConfig):

We then define the task parameters. For PointNav, these include the maximum number of steps our agent can take before being reset (this prevents the agent from wandering on forever), and a configuration for the reward function that we will be using.

    # Task Parameters
    MAX_STEPS = 500
    REWARD_CONFIG = {
        "step_penalty": -0.01,
        "goal_success_reward": 10.0,
        "failed_stop_reward": 0.0,
        "shaping_weight": 1.0,
    }

In this case, we set the maximum number of steps to 500. We give the agent a reward of -0.01 for each action that it takes (this is to encourage it to reach the goal in as few actions as possible), and a reward of 10.0 if the agent manages to successfully reach its destination. If the agent selects the stop action without reaching the target we do not punish it (although this is sometimes useful for preventing the agent from stopping prematurely). Finally, our agent gets rewarded if it moves closer to the target and gets punished if it moves further away. shaping_weight controls how strong this signal should be and is here set to 1.0. These parameters work well for training an agent on PointNav, but feel free to play around with them.

Next, we set the parameters of the simulator itself. Here we select a resolution at which the engine will render every frame (640 by 480) and a resolution at which the image will be fed into the neural network (here it is set to a 224 by 224 box).

    # Simulator Parameters
    CAMERA_WIDTH = 640
    CAMERA_HEIGHT = 480
    SCREEN_SIZE = 224

Next, we set the hardware parameters for the training engine. NUM_PROCESSES sets the total number of parallel processes that will be used to train the model. In general, more processes result in faster training, but since each process is a unique instance of the environment in which we are training they can take up a lot of memory. Depending on the size of the model, the environment, and the hardware we are using, we may need to adjust this number, but for a setup with 8 GTX Titans, 60 processes work fine. 60 also happens to be the number of training scenes in RoboTHOR, which allows each process to load only a single scene into memory, saving time and space.

TRAINING_GPUS takes the ids of the GPUS on which the model should be trained. Similarly VALIDATION_GPUS and TESTING_GPUS hold the ids of the GPUS on which the validation and testing will occur. During training, a validation process is constantly running and evaluating the current model, to show the progress on the validation set, so reserving a GPU for validation can be a good idea. If our hardware setup does not include a GPU, these fields can be set to empty lists, as the codebase will default to running everything on the CPU with only 1 process.

    # Training Engine Parameters
    ADVANCE_SCENE_ROLLOUT_PERIOD = 10**13
    NUM_PROCESSES = 60
    TRAINING_GPUS = [0, 1, 2, 3, 4, 5, 6]
    VALIDATION_GPUS = [7]
    TESTING_GPUS = [7]

Since we are using a dataset to train our model we need to define the path to where we have stored it. If we download the dataset instructed above we can define the path as follows

    # Dataset Parameters
    TRAIN_DATASET_DIR = "datasets/robothor-pointnav/train"
    VAL_DATASET_DIR = "datasets/robothor-pointnav/val"

Next, we define the sensors. RGBSensorThor is the environment's implementation of an RGB sensor. It takes the raw image outputted by the simulator and resizes it, to the input dimensions for our neural network that we specified above. It also performs normalization if we want. GPSCompassSensorRoboThor is a sensor that tracks the point our agent needs to move to. It tells us the direction and distance to our goal at every time step.

    SENSORS = [
            RGBSensorThor(
                height=SCREEN_SIZE,
                width=SCREEN_SIZE,
                use_resnet_normalization=True,
                uuid="rgb_lowres",
            ),
            GPSCompassSensorRoboThor(),
    ]

For the sake of this example, we are also going to be using a preprocessor with our model. In AllenAct the preprocessor abstraction is designed with large models with frozen weights in mind. These models often hail from the ResNet family and transform the raw pixels that our agent observes in the environment, into a complex embedding, which then gets stored and used as input to our trainable model instead of the original image. Most other preprocessing work is done in the sensor classes (as we just saw with the RGB sensor scaling and normalizing our input), but for the sake of efficiency, all neural network preprocessing should use this abstraction.

    PREPROCESSORS = [
            Builder(ResnetPreProcessorHabitat,
                {
                    "input_height": SCREEN_SIZE,
                    "input_width": SCREEN_SIZE,
                    "output_width": 7,
                    "output_height": 7,
                    "output_dims": 512,
                    "pool": False,
                    "torchvision_resnet_model": models.resnet18,
                    "input_uuids": ["rgb_lowres"],
                    "output_uuid": "rgb_resnet",
                    "parallel": False,  # TODO False for debugging
                }
            ),
    ]

Next, we must define all of the observation inputs that our model will use. These are just the hardcoded ids of the sensors we are using in the experiment.

    OBSERVATIONS = [
        "rgb_resnet",
        "target_coordinates_ind",
    ]

Finally, we must define the settings of our simulator. We set the camera dimensions to the values we defined earlier. We set rotateStepDegrees to 30 degrees, which means that every time the agent takes a turn action, they will rotate by 30 degrees. We set grid size to 0.25 which means that every time the agent moves forward, it will do so by 0.25 meters.

    ENV_ARGS = dict(
            width=CAMERA_WIDTH,
            height=CAMERA_HEIGHT,
            rotateStepDegrees=30.0,
            gridSize=0.25,
    )

Now we move on to the methods that we must define to finish implementing an experiment config. Firstly we have a simple method that just returns the name of the experiment.

   @classmethod
    def tag(cls):
        return "PointNavRobothorRGBPPO"

Next, we define the training pipeline. In this function, we specify exactly which algorithm or algorithms we will use to train our model. In this simple example, we are using the PPO loss with a learning rate of 3e-4. We specify 250 million steps of training and a rollout length of 30 with the ppo_steps and num_steps parameters respectively. All the other standard PPO parameters are also present in this function. metric_accumulate_interval sets the frequency at which data is accumulated from all the processes and logged while save_interval sets how often we save the model weights and run validation on them.

    @classmethod
    def training_pipeline(cls, **kwargs):
        ppo_steps = int(250000000)
        lr = 3e-4
        num_mini_batch = 1
        update_repeats = 3
        num_steps = 30
        save_interval = 5000000
        metric_accumulate_interval = 10000
        gamma = 0.99
        use_gae = True
        gae_lambda = 0.95
        max_grad_norm = 0.5
        return TrainingPipeline(
            save_interval=save_interval,
            metric_accumulate_interval=metric_accumulate_interval,
            optimizer_builder=Builder(optim.Adam, dict(lr=lr)),
            num_mini_batch=num_mini_batch,
            update_repeats=update_repeats,
            max_grad_norm=max_grad_norm,
            num_steps=num_steps,
            named_losses={"ppo_loss": Builder(PPO, kwargs={}, default=PPOConfig, )},
            gamma=gamma,
            use_gae=use_gae,
            gae_lambda=gae_lambda,
            advance_scene_rollout_period=cls.ADVANCE_SCENE_ROLLOUT_PERIOD,
            pipeline_stages=[
                PipelineStage(loss_names=["ppo_loss"], max_stage_steps=ppo_steps)
            ],
            lr_scheduler_builder=Builder(
                LambdaLR, {"lr_lambda": LinearDecay(steps=ppo_steps)}
            ),
        )

We define the helper method split_num_processes to split the different scenes that we want to train with amongst the different available devices. "machine_params" returns the hardware parameters of each process, based on the list of devices we defined above.

    def split_num_processes(self, ndevices):
        assert self.NUM_PROCESSES >= ndevices, "NUM_PROCESSES {} < ndevices".format(self.NUM_PROCESSES, ndevices)
        res = [0] * ndevices
        for it in range(self.NUM_PROCESSES):
            res[it % ndevices] += 1
        return res

    def machine_params(self, mode="train", **kwargs):
        if mode == "train":
            workers_per_device = 1
            gpu_ids = [] if not torch.cuda.is_available() else self.TRAINING_GPUS * workers_per_device
            nprocesses = 1 if not torch.cuda.is_available() else self.split_num_processes(len(gpu_ids))
            sampler_devices = self.TRAINING_GPUS
            render_video = False
        elif mode == "valid":
            nprocesses = 1
            gpu_ids = [] if not torch.cuda.is_available() else self.VALIDATION_GPUS
            render_video = False
        elif mode == "test":
            nprocesses = 1
            gpu_ids = [] if not torch.cuda.is_available() else self.TESTING_GPUS
            render_video = False
        else:
            raise NotImplementedError("mode must be 'train', 'valid', or 'test'.")

        # Disable parallelization for validation process
        if mode == "valid":
            for prep in self.PREPROCESSORS:
                prep.kwargs["parallel"] = False

        observation_set = Builder(ObservationSet, kwargs=dict(
            source_ids=self.OBSERVATIONS, all_preprocessors=self.PREPROCESSORS, all_sensors=self.SENSORS
        )) if mode == 'train' or nprocesses > 0 else None

        return {
            "nprocesses": nprocesses,
            "gpu_ids": gpu_ids,
            "sampler_devices": sampler_devices if mode == "train" else gpu_ids,
            "observation_set": observation_set,
            "render_video": render_video,
        }

Now we define the actual model that we will be using. AllenAct offers first-class support for PyTorch, so any PyTorch model that implements the provided ActorCriticModel class will work here. Here we borrow a model from the pointnav_baselines project (which unsurprisingly contains several PointNav baselines). It is a small convolutional network that expects the output of a ResNet as its rgb input followed by a single-layered GRU. The model accepts as input the number of different actions our agent can perform in the environment through the action_space parameter, which we get from the task definition. We also define the shape of the inputs we are going to be passing to the model with observation_space We specify the names of our sensors with goal_sensor_uuid and rgb_resnet_preprocessor_uuid. Finally, we define the size of our RNN with hidden_layer and the size of the embedding of our goal sensor data (the direction and distance to the target) with goal_dims.

    # Define Model
    @classmethod
    def create_model(cls, **kwargs) -> nn.Module:
        return ResnetTensorPointNavActorCritic(
            action_space=gym.spaces.Discrete(len(PointNavTask.class_action_names())),
            observation_space=kwargs["observation_set"].observation_spaces,
            goal_sensor_uuid="target_coordinates_ind",
            rgb_resnet_preprocessor_uuid="rgb_resnet",
            hidden_size=512,
            goal_dims=32,
        )

We also need to define the task sampler that we will be using. This is a piece of code that generates instances of tasks for our agent to perform (essentially starting locations and targets for PointNav). Since we are getting our tasks from a dataset, the task sampler is a very simple code that just reads the specified file and sets the agent to the next starting locations whenever the agent exceeds the maximum number of steps or selects the stop action.

    # Define Task Sampler
    @classmethod
    def make_sampler_fn(cls, **kwargs) -> TaskSampler:
        return PointNavDatasetTaskSampler(**kwargs)

You might notice that we did not specify the task sampler's arguments, but are rather passing them in. The reason for this is that each process will have its own task sampler, and we need to specify exactly which scenes each process should work with. If we have several GPUS and many scenes this process of distributing the work can be rather complicated so we define a few helper functions to do just this.

    # Utility Functions for distributing scenes between GPUs
    @staticmethod
    def _partition_inds(n: int, num_parts: int):
        return np.round(np.linspace(0, n, num_parts + 1, endpoint=True)).astype(
            np.int32
        )

    def _get_sampler_args_for_scene_split(
        self,
        scenes_dir: str,
        process_ind: int,
        total_processes: int,
        seeds: Optional[List[int]] = None,
        deterministic_cudnn: bool = False,
    ) -> Dict[str, Any]:
        path = os.path.join(scenes_dir, "*.json.gz")
        scenes = [scene.split("/")[-1].split(".")[0] for scene in glob.glob(path)]
        if total_processes > len(scenes):  # oversample some scenes -> bias
            if total_processes % len(scenes) != 0:
                print(
                    "Warning: oversampling some of the scenes to feed all processes."
                    " You can avoid this by setting a number of workers divisible by the number of scenes"
                )
            scenes = scenes * int(ceil(total_processes / len(scenes)))
            scenes = scenes[: total_processes * (len(scenes) // total_processes)]
        else:
            if len(scenes) % total_processes != 0:
                print(
                    "Warning: oversampling some of the scenes to feed all processes."
                    " You can avoid this by setting a number of workers divisor of the number of scenes"
                )
        inds = self._partition_inds(len(scenes), total_processes)

        return {
            "scenes": scenes[inds[process_ind]:inds[process_ind + 1]],
            "max_steps": self.MAX_STEPS,
            "sensors": self.SENSORS,
            "action_space": gym.spaces.Discrete(len(PointNavTask.class_action_names())),
            "seed": seeds[process_ind] if seeds is not None else None,
            "deterministic_cudnn": deterministic_cudnn,
            "rewards_config": self.REWARD_CONFIG
        }

The very last things we need to define are the sampler arguments themselves. We define them separately for a train, validation, and test sampler, but in this case, they are almost the same. The arguments need to include the location of the dataset and distance cache as well as the environment arguments for our simulator, both of which we defined above and are just referencing here. The only consequential differences between these task samplers are the path to the dataset we are using (train or validation) and whether we want to loop over the dataset or not (we want this for training since we want to train for several epochs, but we do not need this for validation and testing). Since the test scenes of RoboTHOR are private we are also testing on our validation set.

    def train_task_sampler_args(
        self,
        process_ind: int,
        total_processes: int,
        devices: Optional[List[int]] = None,
        seeds: Optional[List[int]] = None,
        deterministic_cudnn: bool = False,
    ) -> Dict[str, Any]:
        res = self._get_sampler_args_for_scene_split(
            os.path.join(self.TRAIN_DATASET_DIR, "episodes"),
            process_ind,
            total_processes,
            seeds=seeds,
            deterministic_cudnn=deterministic_cudnn,
        )
        res["scene_directory"] = self.TRAIN_DATASET_DIR
        res["loop_dataset"] = True
        res["env_args"] = {}
        res["env_args"].update(self.ENV_ARGS)
        res["env_args"]["x_display"] = (
            ("0.%d" % devices[process_ind % len(devices)]) if devices is not None and len(devices) > 0 else None
        )
        res["allow_flipping"] = True
        return res

    def valid_task_sampler_args(
        self,
        process_ind: int,
        total_processes: int,
        devices: Optional[List[int]] = None,
        seeds: Optional[List[int]] = None,
        deterministic_cudnn: bool = False,
    ) -> Dict[str, Any]:
        res = self._get_sampler_args_for_scene_split(
            self.VAL_DATASET_DIR + '/episodes/',
            process_ind,
            total_processes,
            seeds=seeds,
            deterministic_cudnn=deterministic_cudnn,
        )
        res["scene_directory"] = self.VAL_DATASET_DIR
        res["loop_dataset"] = False
        res["env_args"] = {}
        res["env_args"].update(self.ENV_ARGS)
        res["env_args"]["x_display"] = (
            ("0.%d" % devices[process_ind % len(devices)]) if devices is not None and len(devices) > 0 else None
        )
        return res

    def test_task_sampler_args(
            self,
            process_ind: int,
            total_processes: int,
            devices: Optional[List[int]] = None,
            seeds: Optional[List[int]] = None,
            deterministic_cudnn: bool = False,
    ) -> Dict[str, Any]:
        res = self._get_sampler_args_for_scene_split(
            self.VAL_DATASET_DIR + '/episodes/',
            process_ind,
            total_processes,
            seeds=seeds,
            deterministic_cudnn=deterministic_cudnn,
        )
        res["scene_directory"] = self.VAL_DATASET_DIR
        res["loop_dataset"] = False
        res["env_args"] = {}
        res["env_args"].update(self.ENV_ARGS)
        res["env_args"]["x_display"] = "10.0"
        return res

This is it! If we copy all of the code into a file we should be able to run our experiment!

Training Model On Debug Dataset#

We can test if our installation worked properly by training our model on a small dataset of 4 episodes. This should take about 20 minutes on a computer with a NVIDIA GPU.

First we need to change the dataset path to point to our small debug dataset. Modify these lines in your file

    # Dataset Parameters
    TRAIN_DATASET_DIR = "datasets/robothor-pointnav/debug"
    VAL_DATASET_DIR = "datasets/robothor-pointnav/debug"

Note that we changed both the train and test dataset to debug, so the model will train and validate on the same 4 episodes.

We can now train a model by running:

python main.py -o <PATH_TO_OUTPUT> -c -b <BASE_DIRECTORY_OF_YOUR_EXPERIMENT> <EXPERIMENT_NAME>

If using the same configuration as we have set up, the following command should work:

python main.py -o storage/robothor-pointnav-rgb-resnet-resnet -b projects/tutorials pointnav_robothor_rgb_ddppo

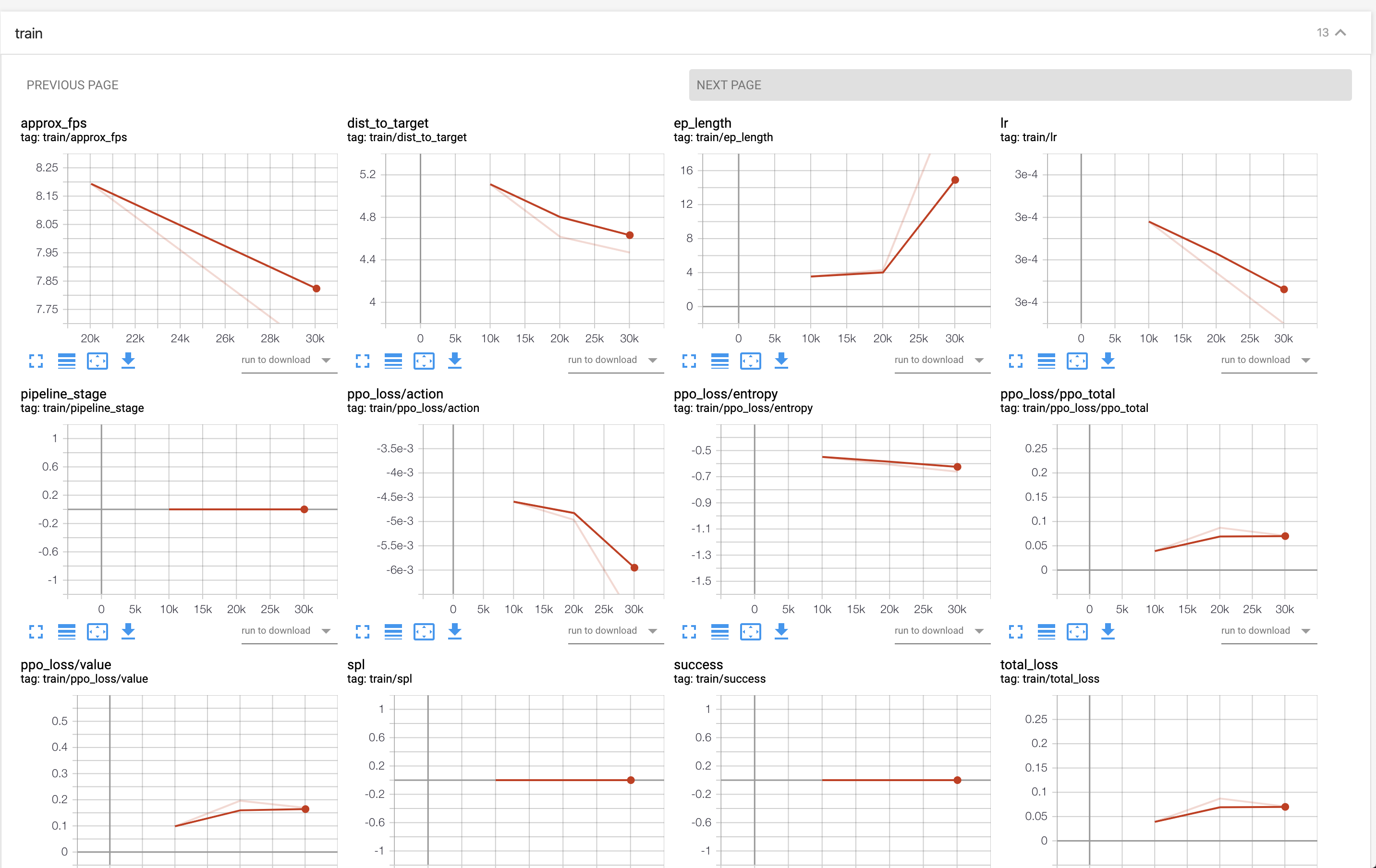

If we start up a tensorboard server during training and specify that output_dir=storage the output should look something like this: tensorboard output

Training Model On Full Dataset#

We can also train the model on the full dataset by changing back our dataset path and running the same command as above. But be aware, training this takes nearly 2 days on a machine with 8 GPU.

Testing Model#

To test the performance of a model please refer to this tutorial.

Conclusion#

In this tutorial, we learned how to create a new PointNav experiment using AllenAct. There are many simple and obvious ways to modify the experiment from here - changing the model, the learning algorithm and the environment each requires very few lines of code changed in the above file, allowing us to explore our embodied ai research ideas across different frameworks with ease.
